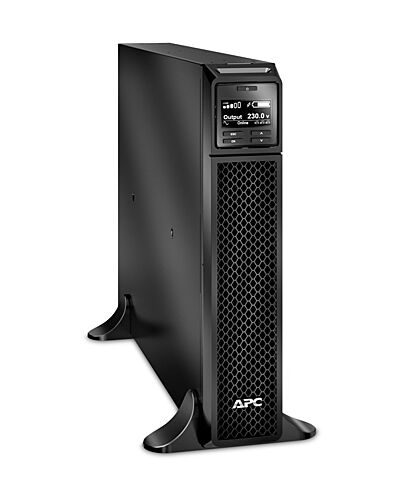

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

£1,864.70
APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 2.2 kVA, 1980 W, Sine, 100 V, 275 V
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Features

UPS topology*
Double-conversion (Online)
Output power capacity*
2.2 kVA
Output power*
1980 W
Waveform*
Sine
Input operation voltage (min)*
100 V
Input operation voltage (max)*
275 V
Input frequency*
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Surge energy rating
340 J
Efficiency
92.2%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Noise level
55 dB
Surge protection
Yes
Audible alarm(s)
Yes
Web-based management
Yes
Auto-restart
Yes

Ports & interfaces

AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes

Battery

Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
367 VAh
Number of batteries supported
1
Typical backup time at full load
3.9 min
Typical backup time at half load
11.6 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes

Design

Form factor*
Rackmount/Tower
Cable length
2.44 m

Design

Product colour*
Black
Display type
LCD
LED indicators
Yes
International Protection (IP) code
IP20

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m

Certificates

Compliance certificates
RoHS
Certification
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Packaging content

Cables included
USB cable
Quick installation guide
Yes

Sustainability

Sustainability certificates
ENERGY STAR, Green Premium

Weight & dimensions

Width
85 mm
Depth
584 mm
Height
432 mm
Weight
25 kg

Packaging data

Bracket
Yes
Warranty card
Yes
Software CD
Yes
Package width
599 mm
Package depth
810 mm
Package height
246 mm
Package weight
30.8 kg

Logistics data

Products per pallet
12 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
3634.43

Other features

Interface
SmartSlot
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Power cord Removable support feet

Additional Information

More Information
EAN/UPC 731304317630
MPN SRT2200XLI
BRAND APC HW
