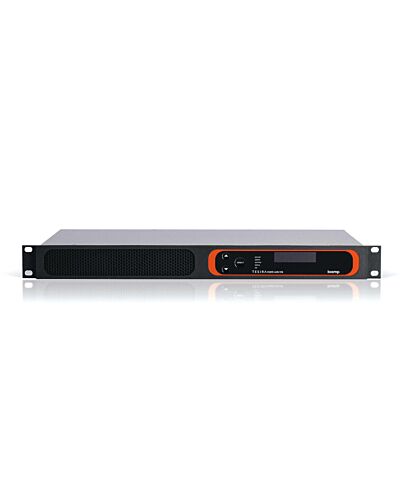

Biamp Tesira FORTÉ AVB VT4
£2,607.00
Biamp Tesira FORTÉ AVB VT4, 8000 Ω, 207 Ω, Black, Metallic, 1U, OLED, 20 - 20000 Hz
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The TesiraFORTÉ AVB VT4 is a digital audio server with 4 analog inputs and 4 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 4 inputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface. TesiraFORTÉ AVB VT4 utilizes AVB/TSN digital audio networking, and can be used as a standalone device or combined with other TesiraFORTÉ AVB devices and Tesira DSPs, expanders, endpoints, and controllers.
The TesiraFORTÉ AVB VT4 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The TesiraFORTÉ AVB VT4 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- 128 x 128 channels of AVB
- 4 mic/line level inputs with AEC, 4 mic/line level outputs
- Gigabit Ethernet port
- RS-232 serial port
- 4-pin GPIO
- 2-line OLED display with capacitive-touch navigation
- Rack mountable (1RU)
- System configuration and control via Ethernet
- Internal universal power supply
- SIP VoIP interface via RJ-45 connector
- Standard FXO telephone interface via RJ-11 connector
- Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
- CE marked, UL listed, and RoHS compliant
- Compliant with the US Trade Agreement Act (TAA)
Specifications
Features
Input impedance
8000 Ω
Output impedance
207 Ω
Product colour
Black, Metallic
Rack mounting
Yes
Rack capacity
1U
Display
Built-in display
Yes
Display type
OLED
Audio
Frequency range
20 - 20000 Hz
Total Harmonic Distortion plus Noise (THD+N)
0.006%
Dynamic range
108 dB
Network
Ethernet interface type
Gigabit Ethernet
Supported network protocols
IEEE 802.1X
Ports & interfaces
RJ-45 ports quantity
1
USB ports quantity
1
Analog audio input terminal ports
4
Analog audio output terminal ports
4
RS-232 ports
1
Power
Power consumption (typical)
35 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 98%
Certificates
Certification
FCC Part 15B (USA)
FCC Part 68 (USA)
Industry Canada CS-03 (Canada)
CE marked (Europe)
UL und C-UL listed (USA and Canada)
RCM (Australia)
RoHS Directive (Europe)
Weight & dimensions
Width
483 mm
Depth
267 mm
Height
44 mm
Weight
3.63 kg
Packaging data
Package width
406.4 mm
Package depth
533.4 mm
Package height
177.8 mm
Package weight
4.72 kg
Logistics data
Export Control Classification Number (ECCN)
5A002
Country of origin
United States
Additional Information
| EAN/UPC | 814367024742 |
|---|---|
| MPN | 913.0452.900 |
| BRAND | BIAMP |
