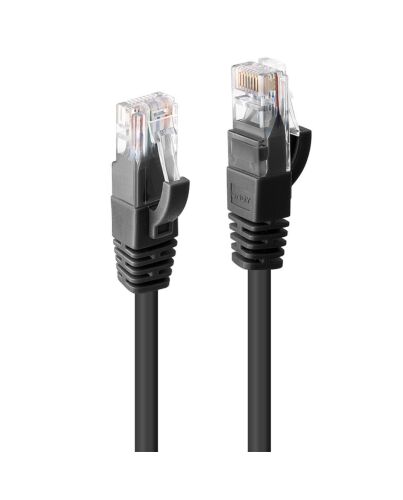

Lindy 3m Cat.6 U/UTP Network Cable, Black
£3.37
Lindy 3m Cat.6 U/UTP Network Cable, Black, 3 m, Cat6, U/UTP (UTP), RJ-45, RJ-45, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Key Features
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6 U/UTP, PVCandnbsp; andnbsp;
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
- 10 year warranty
Specifications
Features
Product colour*
Black
Cable length*
3 m
Cable standard*
Cat6
Cable shielding*
U/UTP (UTP)
Connector 1*
RJ-45
Connector 2*
RJ-45
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector contacts plating
Gold
Connector shield material
Copper alloy
Jacket material
Polyvinyl chloride (PVC)
Cable shape
Round
Conductor material
Copper
Connector housing material
Polycarbonate (PC)
Cabling technology
10/100/1000Base-T(X)
Ethernet interface type
Gigabit Ethernet
AWG wire size
24
Data transfer rate
1000 Mbit/s
Frequency
250 MHz
Features
Bend radius (min)
6.9 cm
Snagless cable boot
Yes
Nominal attenuation
32.8dB/100m @250MHz
Operational conditions
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-20 - 75 °C
Certificates
Certification
RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter
5.8 mm
Connector 1 dimensions (WxDxH)
11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH)
11.6 x 22.8 x 8.3 mm
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package type
Polybag
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4002888480796 |
|---|---|
| MPN | 48079 |
| BRAND | Lindy |
