Lindy HDMI 2.0 EDID
£35.05
In stock
Product Details
Description

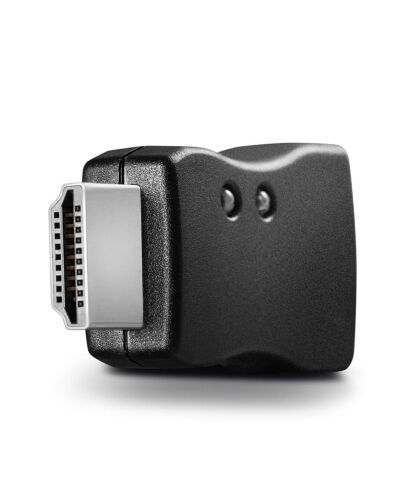

The Lindy HDMI 2.0 EDID Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM Extenders, Switches and Splitters. It can also be used in place of a monitor to keep the graphics card of a PC or Server awake for remote access via IP. With support for resolutions up to Ultra HD 4K 60Hz (via cloning) including High-Dynamic Range and with the ability to passthrough HDCP 2.2 content, the is suitable for use with the very latest PC and AV applications.
Some computer systems, KVM switches and digital video signage systems may interrupt the flow of EDID data, or may not be able to pass this information directly back to the video card's output port. This adapter can be used to quickly and easily the EDID data f a HDMI display so that the graphics card has direct access to the correct data f the display, the cloning process takes less than 10 seconds!
It is also possible to use the without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Some computer systems, KVM switches and digital video signage systems may interrupt the flow of EDID data, or may not be able to pass this information directly back to the video card's output port. This adapter can be used to quickly and easily the EDID data f a HDMI display so that the graphics card has direct access to the correct data f the display, the cloning process takes less than 10 seconds!
It is also possible to use the without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Key Features
- Continuously emulates HDMI EDID information
- Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR
- Uses d data or, when this is not available, stored pre-set screen resolutions/timings
- Powered via HDMI Source Interface
- 2 Year warranty
Specifications
Ports & interfaces
Connector 1*
HDMI
Connector 2*
HDMI
Connector 1 gender
Male
Connector 2 gender
Female
Performance
Product colour*
Black
Supported video es
720p
Data transfer rate
18 Gbit/s
Maximum resolution
3840 x 2160 pixels
Maximum refresh rate
75 Hz
Colour depth
24 bit
Plug and Play
Yes
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Operational conditions
Relative humidity
0 - 80%
Certificates
Compliance certificates
RoHS
Certification
CE, FCC, REACH
Weight & dimensions
Weight
8 g
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package width
136 mm
Package height
138 mm
Package weight
13 g
Package type
Polybag
Additional Information
| EAN/UPC | 4002888321150 |
|---|---|
| MPN | 32115 |
| BRAND | Lindy |
