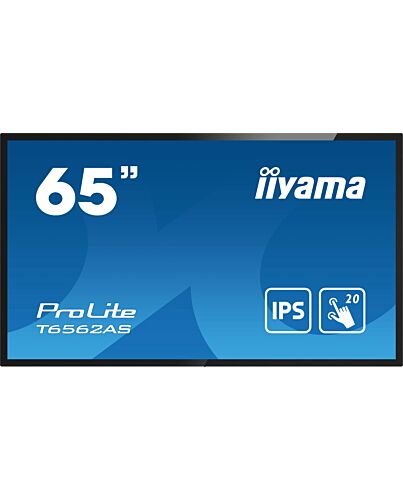

iiyama T6562AS-B1 Signage Display Kiosk design 163.8 cm (64.5") LED 500 cd/m² 4K Ultra HD Black Touc
£1,122.00
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined design of the T6562AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the ern office space, Retail shops and Kiosks. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
Reasons To Buy
Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait es with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content f any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.Touch technology - Capacitive
Specifications
Display
Panel type
IPS
Display diagonal*
163.8 cm (64.5")
Display technology*
LED
Display resolution*
3840 x 2160 pixels
Display brightness*
500 cd/m²
HD type*
4K Ultra HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
20
Multi-touch
Yes
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.372 x 0.372 mm
Active display area (W x H)
1422.4 x 802.6 mm
Display diagonal (metric)
164 cm
Horizontal scan range
30 - 135 kHz
Surface hardness
6H
Glass thickness
2.5 mm
RGB colour space
NTSC
Ports & interfaces
HDMI ports quantity*
3
DVI port*
No
USB port*
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN (RJ-45) ports
1
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Card reader integrated
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design*
Kiosk design
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
400 x 400 mm
Bezel colour
Black
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
Number of OSD languages
8
On Screen Display (OSD) languages
German, English, Spanish, French, Japanese, Dutch, Polish, Russian
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Performance
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
165 W
Power consumption (standby)*
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system*
Yes
Built-in processor*
Yes
Internal memory
2 GB
On-board graphics card el
ARM Mali-G51
Internal storage capacity
16 GB
Operating system installed
Android 8.0
Weight & dimensions
Display width
1485 mm
Display depth
71.8 mm
Display height
860 mm
Display weight
38.4 kg
Width
1485 mm
Depth
71.8 mm
Height
860 mm
Weight
38.4 kg
Width (with stand)
1485 mm
Depth (with stand)
71.8 mm
Height (with stand)
860 mm
Weight (with stand)
38.4 kg
Packaging data
Package width
1649 mm
Package depth
223 mm
Package height
1021 mm
Package weight
46 kg
Packaging content
Remote control included
Yes
Cables included

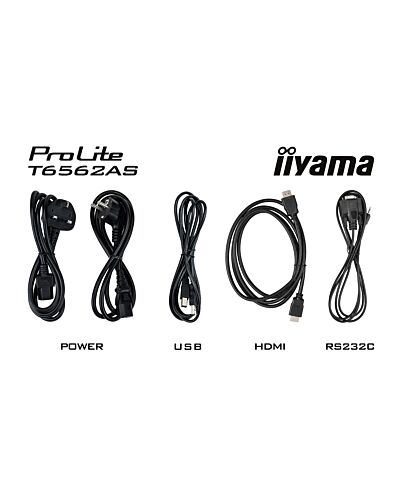

AC, USB, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Network
Ethernet LAN*
Yes
Wi-Fi*
No
Technical details
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction gamma selection, colour temp., colour control, smart power, overscan, reset), screen (zoom e, custom zoom, reset), audio (balance, treble, bass, volume, max. volume, min. volume, mute, reset), configuration1 (switch on state, panel saving, RS32-routing, boot on source, WOL, RGB range, reset, factory reset), configuration2 (OSD turn off, OSD H position, OSD V position, system rotation, information OSD, logo, monitor ID, heat status, monitor info, HDMI version, reset), advanced option (IR control, power LED light, keyboard control, off timer, date and time, schedule, HDMI with One Wire, auto signal detection, language, OSD transparency, power save, reset), Android settings, display e
Sustainability certificates
ErP
Pallet net height
13 cm
Pallet net length
114 cm
Pallet net width
166 cm
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Quick start guide
Yes
Viewable size, horizontal
80.3 cm
Compatible operating systems
Compatible with Windows 10/11 and Linux (Kernel 3.0 and higher). MacOS not supported.
Power supply type
Internal
Additional Information
| EAN/UPC | 4948570120482 |
|---|---|
| MPN | T6562AS-B1 |
| BRAND | Iiyama |
