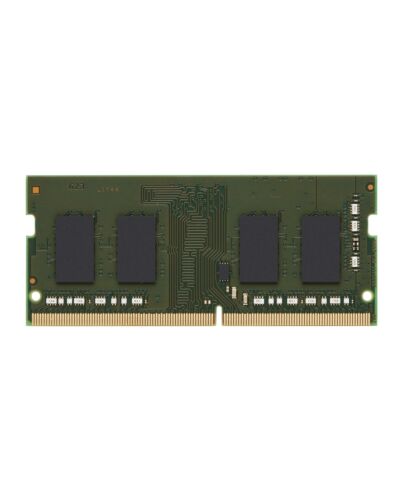

Kingston Technology ValueRAM memory module 16 GB 1 x 16 GB DDR4
£28.51
Kingston Technology ValueRAM , 16 GB, 1 x 16 GB, DDR4, 260-pin SO-DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
Key Features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
- data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
- via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Specifications
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
22
Internal memory*
16 GB
Memory layout (modules x size)*
1 x 16 GB
Internal memory type*
DDR4
Component for*
Laptop
Memory form factor*
260-pin SO-DIMM
ECC*
No
Features
Country of origin
Taiwan
Weight & dimensions
Width
69.6 mm
Height
30 mm
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 740617310894 |
|---|---|
| MPN | KVR32S22S8/16 |
| BRAND | KINGSTON |
