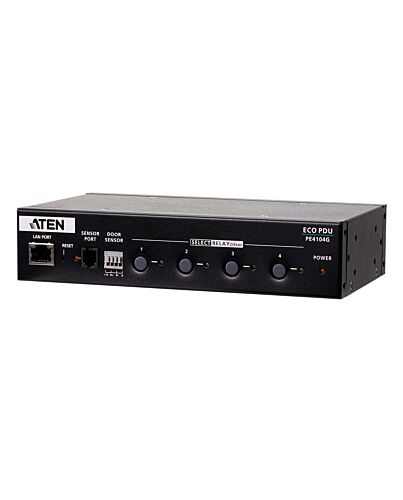

ATEN 4-Outlet IP Control Box
£281.18
ATEN 4-Outlet IP Control Box, Basic, 1U, Black, 4 AC outlet(s), C13 coupler, IEC 320
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
1x IP Control Box
1x KC06-0012-B07G Standard Rack Mount Kit
1x LINP-10F3-2B0G Power Cord
4x 0X02-0040-002G Footpads
1x User Instructions
1x IP Control Box
1x KC06-0012-B07G Standard Rack Mount Kit
1x LINP-10F3-2B0G Power Cord
4x 0X02-0040-002G Footpads
1x User Instructions
Key Features
- Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
- Power-on sequencing - users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
- Works with web-based eco DC software
- Remote power control via TCP/IP and a built in 10/100 Ethernet port
Specifications
Design
PDU types*
Basic
Rack capacity*
1U
Product colour
Black
Ports & interfaces
AC outlets quantity*
4 AC outlet(s)
Power plug
IEC 320
AC outlet types*
C13 coupler
Ethernet LAN (RJ-45) ports
1
Features
Reset button
Yes
LED indicators
Yes
Cable length
3 m
Power
Nominal input voltage*
100-240 V
Maximum current*
10 A
Certificates
Compliance certificates
CE
Certification
CE-EMC
CE-LVD
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
200 mm
Depth
115 mm
Height
44 mm
Weight
1.29 kg
Packaging content
Cables included
AC
Manual
Yes
Rack mount kit
Yes
Packaging data
Package weight
1.49 kg
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Logistics data
Master (outer) case net weight
6.45 kg
Master (outer) case width
292 mm
Master (outer) case length
517 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
8.04 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710469340086 |
|---|---|
| MPN | PE4104G |
