Networking Equipments

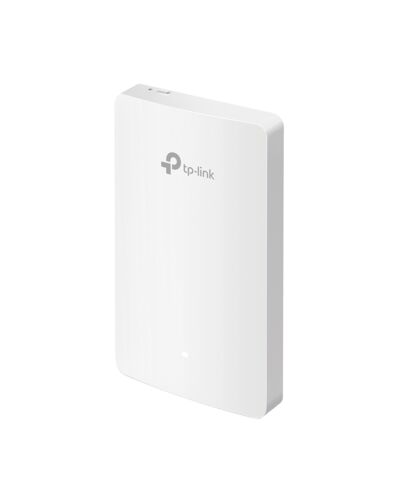

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
£74.30
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Key Features
- Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
- Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
- Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
- Cloud management and Omada app supported for ultra-convenience and easy management
- Enterprise class Wi-Fi security helps to decrease network security threats
- Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
1167 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Cabling technology
10/100/1000Base-T(X)
Automatic channel selection
Yes
Automatic channel scanning
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, VLAN mapping
Rate limiting
Yes
Wireless isolation
Yes
Band steering
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
20 - 23 dBm
Transmitting power (FCC)
21 dBm
Security
Security algorithms*
64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Remote Authentication Dial-In User Service (RADIUS)
Yes
Access Control List (ACL)
Yes
Protocols
Universal Plug and Play (UPnP)
Yes
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
4
WAN connection
Ethernet (RJ-45)
Power
Power over Ethernet (PoE)*
Yes
Power
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE
Power consumption (typical)
24.4 W
Design
Placement*
Wall
Product colour*
White
Cable lock slot
Yes
Reset button
Yes
LED indicators
LAN, Power, Status, WAN, WLAN
Antenna
Antenna type*
Internal
Antenna features
Integrated antenna
Antennas quantity
2
Antenna gain level (max)
4 dBi
Performance
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width
143 mm
Depth
86 mm
Height
20 mm
Packaging data
Package width
117 mm
Package depth
184 mm
Package height
33 mm
Package weight
300 g
Package type
Box
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364006341 |
|---|---|
| MPN | EAP235-WALL |
