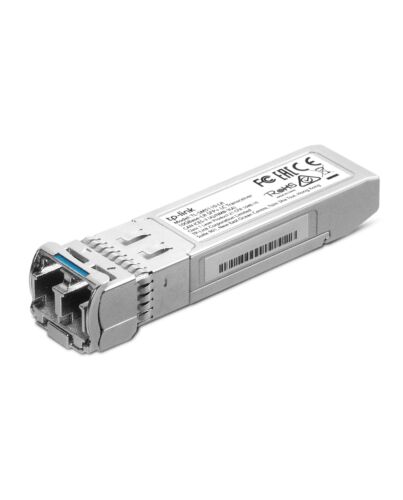

TP-Link 10GBase-LR SFP+ LC Transceiver
£29.90
TP-Link 10GBase-LR SFP+ LC Transceiver, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, LR
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Key Features
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

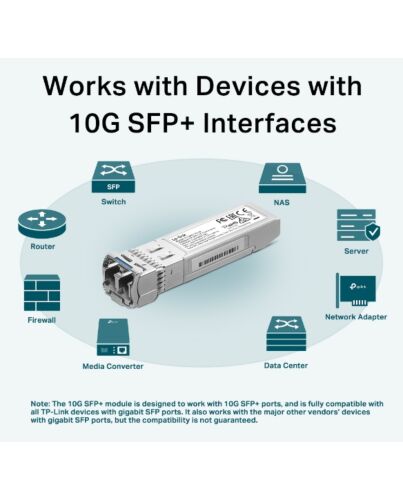

- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
10000 Mbit/s
Interface type*
SFP+
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
LR
Maximum transfer distance
10000 m
Wavelength
1310 nm
Networking standards
IEEE 802.3ae
Digital Diagnostics Monitoring (DDM)
Yes
Features
Hot-Plug support
Yes
Brand compatibility
TP-Link
Compatible products
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Power
Input voltage
3.3 V
Certificates
Certification
FCC, CE
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package width
81.5 mm
Package depth
122.5 mm
Package height
38.5 mm
Package weight
60 g
Logistics data
Harmonized System (HS) code
85369010
Additional Information
| EAN/UPC | 4897098682739 |
|---|---|
| MPN | SM5110-LR |
