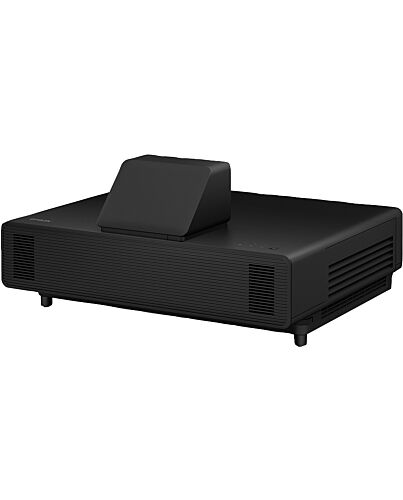

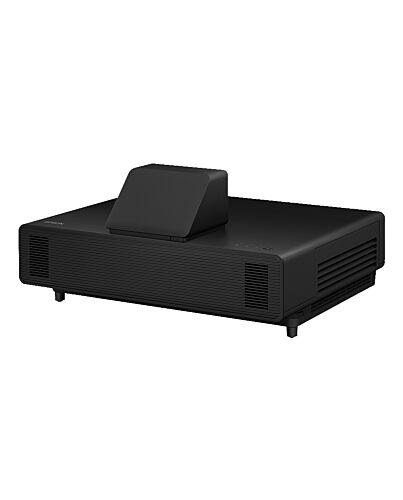

Epson EB-805F Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) Black
£2,840.47
Epson EB-805F, 5000 ANSI lumens, 3LCD, 1080p (1920x1080), 2500000:1, 16:9, 1651 - 3302 mm (65 - 130")
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
EB-805F
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.
Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.
Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
Key Features
- Ultra-short-throw signage projector: Compact, unobtrusive design
- Up to 130-inch display: Full HD resolution, 5,000 lumen brightness and 3LCD technology
- Fit and forget reliability: Low maintenance laser projector with a 5 year warranty
- Easy installation: 360 degree rotation with portrait projection support
- Flexible playback: Play content directly from a USB stick
Specifications
Projector
Screen size compatibility*
1651 - 3302 mm (65 - 130")
Projection distance (wide)
0 - 0.4 m
Projection distance (tele)
0 - 0.8 m
Projector brightness*
5000 ANSI lumens
Projection technology*
3LCD
Projector native resolution*
1080p (1920x1080)
Contrast ratio (typical)*
2500000:1
Native aspect ratio*
16:9
Number of colours
1.07 billion colours
Projector brightness (economic mode)
3500 ANSI lumens
Vertical scan range
192 - 240 Hz
Keystone correction, horizontal
-3 - 3°
Keystone correction, vertical
-3 - 3°
Matrix size
1.57 cm (0.62")
White light output
5000 ANSI lumens
Colour light output
5000 ANSI lumens
Heat dissipation
1244 BTU/h
Light source
Light source type*
Laser
Service life of light source*
20000 h
Service life of light source (economic mode)
30000 h
Lens system
Focus*
Manual
Fixed focal length
3.9 mm
Zoom type
Auto
Zoom ratio
1.35:1
Throw ratio
0.27 - 0.37:1
Video
Full HD*
Yes
Video processing
10 bit
Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Ports & interfaces
HDMI connector type
Full-size
USB 2.0 ports quantity
2
USB 2.0 Type-B ports quantity
1
Audio (L/R) in*
3
Audio (L/R) out
1
Serial interface type*
RS-232C
VGA (D-Sub) ports quantity*
2
HDMI ports quantity*
4
Network
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Features
Noise level (economic mode)
27 dB
Noise level*
36 dB
Country of origin
China
Password protection
Yes
Multimedia
Built-in speaker(s)*
Yes
RMS rated power
8 W
Design
Product type*
Ultra short throw projector
Product colour*
Black
Placement
Ceiling, Desktop, Wall
Cable lock slot
Yes
Cable lock slot type
Kensington
Power
Power source*
AC
Power consumption (typical)*
366 W
Power consumption (standby)*
0.5 W
Power consumption (economy mode)
262 W
AC input voltage
220-240 V
AC input frequency
50 - 60 Hz
Software
Software support
via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Operational conditions
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
458 mm
Depth
375 mm
Height
210 mm
Weight*
9.4 kg
Package width
535 mm
Package depth
595 mm
Package height
350 mm
Package weight
13.2 kg
Packaging content
Remote control included*
Yes
Batteries included
Yes
Cables included
AC
Warranty card
Yes
WLAN adapter included
Yes
Bundled software
Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management
Technical details
Sustainability certificates
TCO
Logistics data
Quantity per pack
1 pc(s)
Products per pallet
12 pc(s)
Pallet gross weight
0 g
Products per pallet (UK)
12 pc(s)
Pallet weight (UK)
0 g
Harmonized System (HS) code
85286200
Other features
Supported network protocols
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Additional Information
EAN/UPC | 8715946688695 |
---|---|
MPN | V11H923640 |
