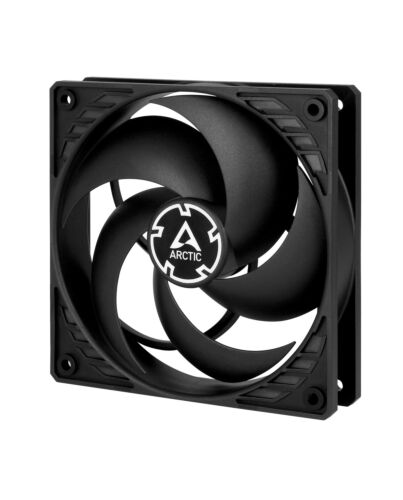

ARCTIC P12 - Pressure-optimised 120 mm Fan

Name: ARCTIC P12 - Pressure-optimised 120 mm Fan
Brand: ARCTIC
SKU: MAZ-0000001302
Price: 3.31 GBP
Availability: InStock

Be the first to review this product

£3.31

ARCTIC P12 - Pressure-optimised 120 mm Fan, Fan, 12 cm, 1800 RPM, 0.3 sone, 95.65 m³/h, Black

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

The P12 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the P12 is especially effective when used on heatsinks and with higher air resistance.

Key Features

Optimised for static pressure
Ideal choice on heatsinks, radiators and (partly-) covered case vents
Push- or pull-configuration possible

Reasons To Buy

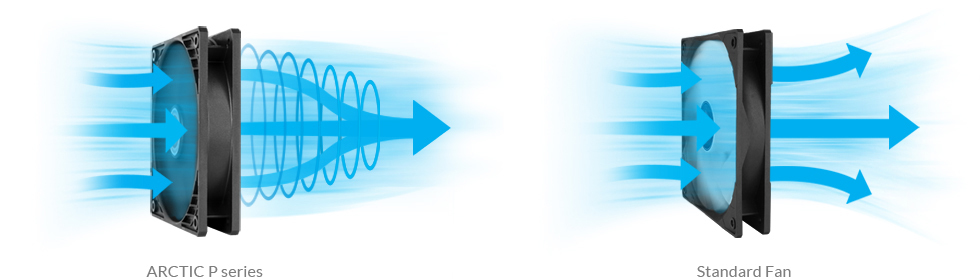

Optimised for Static Pressure

During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance.
Therefore, the P12 is particularly suitable for use on heatsinks and radiators.

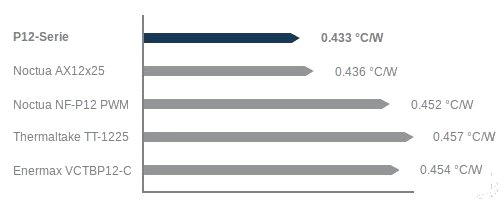

Strong Cooling Performance

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

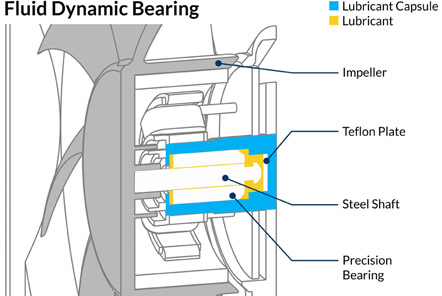

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life f your fan.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

12 cm

Supported processor sockets

Not supported

Compatible processor series

Not supported

Rotational speed (max)

1800 RPM

Noise level

0.3 sone

Maximum airflow

56.3 cfm

Airflow

95.65 m³/h

Bearing type

Fluid Dynamic Bearing (FDB)

Design

Product colour*

Black

Number of fans

1 fan(s)

Number of fan blades

Fan connector

3-pin

Power

Voltage

12 V

Starting voltage

2.8 V

Rated current

0.2 A

Weight & dimensions

Width

120 mm

Depth

120 mm

Height

25 mm

Weight

139 g

Cable length

0.4 m

Package width

123 mm

Package depth

123 mm

Package height

27 mm

Package weight

170 g

Packaging content

Package type

Box

Screws included

Yes

Number of screws

Other features

Country of origin

China

Logistics data

Harmonized System (HS) code

84733080

Additional Information

More Information
EAN/UPC	4895213701372
MPN	ACFAN00118A
BRAND	ARCTIC
