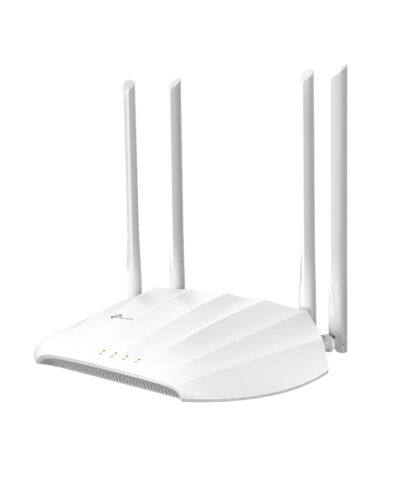

TP-Link AC1200 Wireless Access Point
£39.34
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Captive Portal – Offers a designed portal page for heightened security and marketing
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100/1000Base-T(X)
MIMO
Yes
MIMO type
Multi User MIMO
Fit AP mode features
Wireless distribution system (WDS)
Wi-Fi Multimedia (WMM)/(WME)
Yes
Quality of Service (QoS) support
Yes
Transmitting power (CE)
<20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
Transmitting power (FCC)
<30dBm(2.4GHz&5GHz)
Receiver sensitivity
5 GHz: , 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm , 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm , 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm , 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm , , 2.4 GHz: , 11g 54Mbps: -78 dBm , 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm , 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Security
Security algorithms*
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features
Multiple SSIDs
Auto Wireless Distribution System (WDS)
Yes
Access Control List (ACL)
Yes
Protocols
DHCP server
Yes
DHCP client
Yes
Supported network protocols
IPv4, IPv6
Management features
Web-based management
Yes
Firmware upgradeable
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
WAN connection
Ethernet (RJ-45)
DC-in jack
Yes
Power
Power over Ethernet (PoE)*
Yes
Power
Output voltage
12 V
Output current
1.5 A
Design
Placement*
Table
Product colour*
White
On/off switch
Yes
Reset button
Yes
WPS push button
Yes
LED indicators
Yes
Antenna
Antenna type*
External
Antennas quantity
4
Performance
Compatible operating systems
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
10, MAC OS, NetWare, UNIX or Linux
Certificates
Certification
CE, FCC, RoHS
Weight & dimensions
Width
225 mm
Depth
145.5 mm
Height
37 mm
Packaging data
Package width
400 mm
Package depth
255 mm
Package height
69 mm
Package weight
860 g
Package type
Box
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Additional Information
| EAN/UPC | 6935364052836 |
|---|---|
| MPN | TL-WA1201 |
