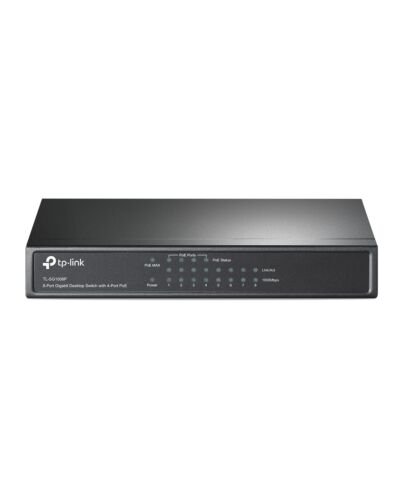

TP-Link 8-Port Gigabit Desktop PoE Switch with 4-Port
£49.99
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
PoE Switches for Your Ultra Convenience
8-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
8-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Key Features
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 55W for all PoE ports
- Requires no configuration and installation
Specifications
Management features
Switch type*
Managed
Quality of Service (QoS) support
No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Power connector
DC-in jack
Network
Networking standards*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Data transmission
Switching capacity*
16 Gbit/s
Forwarding rate
11.904 Mpps
MAC address table*
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
16000
Security
IGMP snooping
Yes
Design
Rack mounting*
No
Stackable*
No
Product colour
Grey
Housing material
Metal
LED indicators
Yes
Performance
Maximum cable length
100 m
Fanless
Yes
Power
Power source*
DC/PoE
Power supply included*
Yes
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
53.5 V
Input current
1.31 A
Power consumption (max)
75 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
64 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
225.75 BTU/h
Weight & dimensions
Width
171 mm
Depth
98 mm
Height
27 mm
Packaging content
Cables included
AC
User guide
Yes
Packaging data
Package type
Box
Package width
223 mm
Package depth
280 mm
Package height
68 mm
Package weight
900 g
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 6935364021177 |
|---|---|
| MPN | TL-SG1008P |
| BRAND | TP-LINK |
