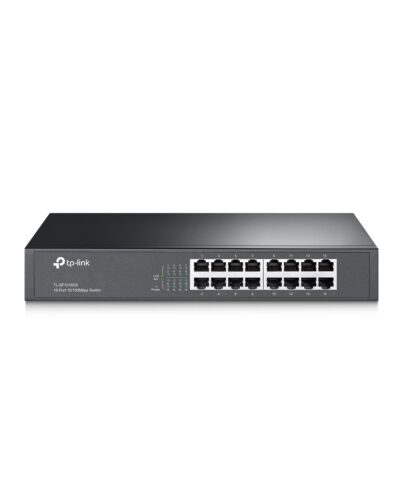

TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
£29.57
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does
The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
TP-LINK Green Technology
This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
TP-LINK Green Technology
This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Key Features
- 16 10/100M RJ45 ports
- Innovative energy-efficient technology saves power up to 75%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 13-inch steel case
Specifications
Management features
Switch type*
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Fast Ethernet (10/100)
Network
Networking standards*
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Data transmission
Supported data transfer rates
10/100 Mbps
Switching capacity*
3.2 Gbit/s
Forwarding rate
2.38 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Maximum data transfer rate
0.1 Gbit/s
Jumbo frames support
Yes
Jumbo frames
2000
Packet buffer memory
2 MB
Security
MAC address filtering
Yes
Protocols
Supported network protocols
CSMA/CD, TCP/IP
Design
Rack mounting*
Yes
Product colour
Black
LED indicators
Link, Power
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
2.06 W
Other features
Dimensions (WxDxH)
294 x 180 x 44 mm
Connectivity technology
Wired
Power requirements
100 - 240VAC, 50/60Hz
Wi-Fi
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
2.06 BTU/h
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging data
Package width
400 mm
Package depth
250 mm
Package height
80 mm
Certificates
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364020880 |
|---|---|
| MPN | TL-SF1016DS |
| BRAND | TP-LINK |
