Lindy 5m USB 3.0 Active Extension

£21.19
Lindy 5m USB 3.0 Active Extension, 5 m, USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

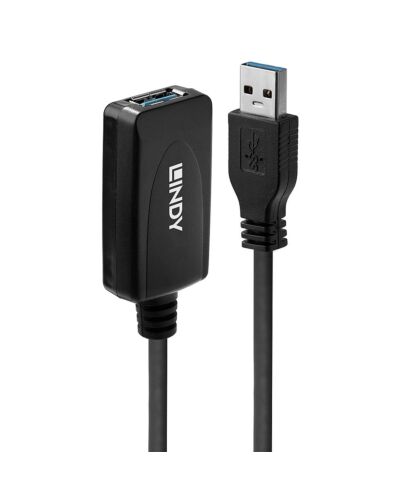

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.

It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Key Features

  • 5 metre USB 3.0 Active Extension Repeater Lead
  • Supports transfer rates up to 5Gbps
  • For even greater distances simply connect 2 cables in series
  • Plug and Play
  • 2 year warranty

Specifications

Features

USB version*
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1*
USB A
Connector 2*
USB A
Connector 1 gender*
Male
Connector 2 gender*
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
28/24
Connector material
Gold
Contact material
Brass
Connector contacts plating
Gold
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Connector shielding
Yes
Connector shield material
Aluminium
Connector housing material
Plastic
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour*
Black
Cable type
Round cable
Transmission medium
Twisted pair
Nominal attenuation
1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz

Weight & dimensions

Cable length*
5 m
Cable diameter
5.5 mm
Weight
220 g
Bend radius (min)
5.5 cm
Connector 1 dimensions (WxDxH)
16 x 48 x 6 mm
Connector 2 dimensions (WxDxH)
24 x 46 x 12 mm

Packaging data

Package type
Blister
Package width
237 mm
Package depth
60 mm
Package height
138 mm
Package weight
289 g

Packaging content

Quantity per pack*
1 pc(s)

Operational conditions

Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
0 - 70 °C

Certificates

Certification
CE, UKCA, FCC, RoHS, REACH

Logistics data

Harmonized System (HS) code
84733080

Additional Information

More Information
EAN/UPC 4002888431552
MPN 43155
