Networking Equipments
Lindy 50m USB 2.0 Cat.6 Extender
£94.96
Lindy 50m USB 2.0 Cat.6 Extender, Network transmitter & receiver, 50 m, 480 Mbit/s, Cat5, Cat5e, Cat6, NS1021, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

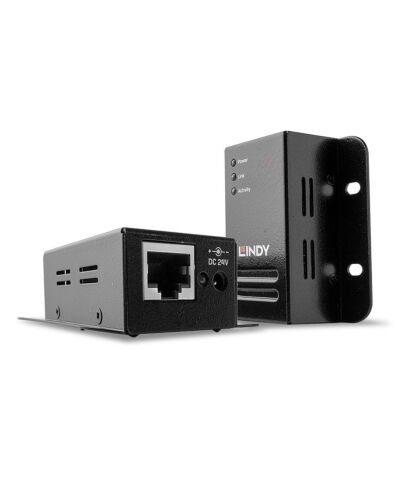

The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Key Features
- Extend a USB 2.0 port up to 50m using low cost Cat. 5e/6 network cable (not included)
- Power over Cable requires a single power supply to be connected to the transmitter only
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug and Play installation
- 2 year warranty
Specifications
Performance
Type*
Network transmitter & receiver
Maximum transfer distance*
50 m
Data transfer rate
480 Mbit/s
Cable types supported
Cat5, Cat5e, Cat6
Chipset
NS1021
Plug and Play
Yes
Ports & interfaces
RJ-45 ports quantity (transmitter)
1
RJ-45 ports quantity (receiver)
1
USB 2.0 ports quantity
2
DC-in jack
Yes
Design
Product colour
Black
Housing material
Metal
LED indicators
Yes
Certification
CE, UKCA, FCC, RoHS, REACH
Power
Input current
0.25 A
Output voltage
24 V
Output current
0.5 A
Power over Ethernet (PoE)
Yes
Power note
3.5/1.35mm DC
Included power plug types
AU, EU, UK, US
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Weight & dimensions
Weight
300 g
Transmitter width
6 cm
Transmitter depth
6.7 cm
Transmitter height
2.3 cm
Receiver width
6 cm
Receiver depth
6.7 cm
Receiver height
2.3 cm
Packaging content
Cables included
USB Type-A to USB Type-B
Manual
Yes
Packaging data
Package type
Box
Package width
185 mm
Package depth
140 mm
Package height
55 mm
Package weight
400 g
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 4002888426800 |
|---|---|
| MPN | 42680 |
