Computer Cables

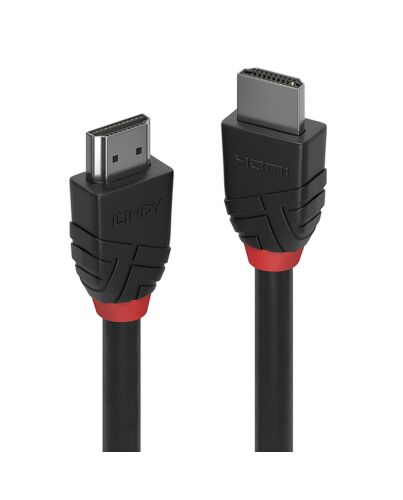

Lindy 1m High Speed HDMI Cable, Black Line
£3.46
In stock
Product Details
Description
F the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths f 0.5m to 15m.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths f 0.5m to 15m.
Key Features
- Entry level High Speed HDMI 2.0 cable for home and small office applications
- Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
- Robust PVC housing, nickel connectors, gold flashed contacts
- Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
- HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty
Specifications
Features
Cable length*
1 m
Connector 1*
HDMI Type A (Standard)
Connector 2*
HDMI Type A (Standard)
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour*
Black
HDMI version
2.0
Supported graphics resolutions
4096 x 2160
Audio Return Channel (ARC)
Yes
HDMI Ethernet channel
Yes
Data transfer rate
18 Gbit/s
Maximum resolution
4096 x 2160 pixels
AWG wire size
30
Contact material
Phosphor bronze
Connector contacts plating*
Gold
Connector housing material
Polyvinyl chloride (PVC)
Connector material
Nickel
Cable material
Copper
Cable type
Round cable
Features
Cable jacket material
Polyvinyl chloride (PVC)
Shield material
Aluminium
Bending radius (min)
6 cm
Colour depth
8 bit
Colour sampling
4:4:4
Nominal attenuation
300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Operational conditions
Operating temperature (T-T)
-10 - 80 °C
Storage temperature (T-T)
-10 - 80 °C
Certificates
Certification
RoHS, REACH, UL
Weight & dimensions
Cable diameter
6 mm
Connector 1 dimensions (WxDxH)
19.2 x 34.1 x 10.6 mm
Connector 2 dimensions (WxDxH)
19.2 x 34.1 x 10.6 mm
Packaging data
Package type
Polybag
Quantity per pack*
1 pc(s)
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4002888364713 |
|---|---|
| MPN | 36471 |
| BRAND | Lindy |
